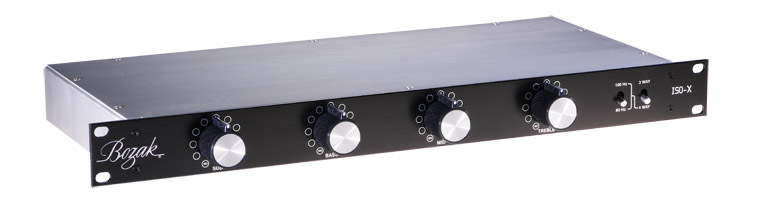

ISO-X






The Bozak ISO-X uses high performance analogue tone control circuits using individually selected discrete components that isolate the signal into three or four bands, selectable by the user.
The level of each band is controlled independently and Bozak’s frequency dividing technology provides superior dynamic response making the control smooth, predictable and ultra controllable.
The individual tone control allows the user to isolate beats, vocals and high hats as well as adjusting the overall tonal quality.
The cross-over points have been carefully selected to yield a very natural sound and to emphasise the artistry in the musical production.

  • Fully discrete analogue design topology.
  • User selectable 3 or 4 Band Isolator.
  • User selectable Sub cross over 80 or 100Hz.
  • Unity gain.
  • Boost +6dB.
  • Large tactile control knobs.
  • Quality Gold RCA and Neutrik XLR connectors.
  • Selectable mains input for worldwide usage.
  • Anodic printed front panels.
  • Lightweight chassis.
  • Rack Ear bracing.

3 or 4 band User Selectable Isolator with 18dB per octave cross over slopes.
Cross-Over Points 18dB/Octave
Mid/Treble 4KHz
Bass/Mid 400Hz
Sub/Bass 80Hz or 100Hz

Gain Range
Full boost +6dB
Mid position 0dB/Unity
Full Cut  Infinity

Connections
Balanced In & Outputs  Balanced 3 pin Neutrik XLR
Un balanced In & Outputs Gold plated RCA
Power Supply Selectable100-125vAC or 200-250vAC 50-60Hz IEC
Dimensions 1U x 19”. 44mm (h) x 483mm (w) x 203mm (d)
Please see the IS0-X FAQ page for more information



:




:




:
