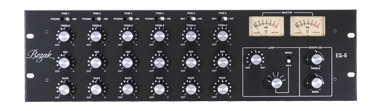

The EQ-6 with its individual Isolator EQ control over the six inputs and coupled with this the routing of the loop and effects across all inputs perfectly complements the Bozak AR-6 mixer. The flexibility of the EQ-6 allows it to be used as a standalone EQ section should you require it.

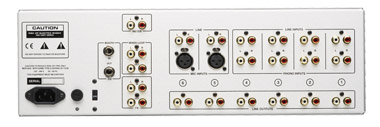

Channels 1~4 are selectable between Phono or Line input while channels 5~6 are selectable between Line or Microphone input. Both the Inputs and the outputs of each channel are on RCA connectors and the output is at line level.
The Loop control allows the DJ to add their choice of effects to any of the six input channels or add effects to the master loop of the mixer, a mix control is included to allow the DJ to adjust the mix between the Dry (without effect) signal and the Wet (with effect) signal.
When connected to the master output of the mixer, the stereo analogue VU meters will display the main output of the mixer and feature LED peak indicators.

• Analogue design topology.
• Massive headroom and un-rivalled gain structure.
• Six input channels.
• 3-Band Isolator EQ on each channel.
• Phono and Line inputs.
• Two balanced microphone inputs.
• Line outputs on each channel.
• Loop in and outputs.
• FX in and outputs.
• Flexible FX routing to each input or master.
• FX wet and dry mix.
• Stereo analogue VU metering with Peak LEDs.
• 2-Band Stereo Booth EQ.
• Quality Gold RCA and Neutrik XLR connectors.
• Selectable mains input for worldwide usage.
• Anodic printed front panel (print wont rub off).
• Lightweight chassis.
• Rack Ear bracing.

3 band Isolator per channel with 12dB per octave cross over slopes:
